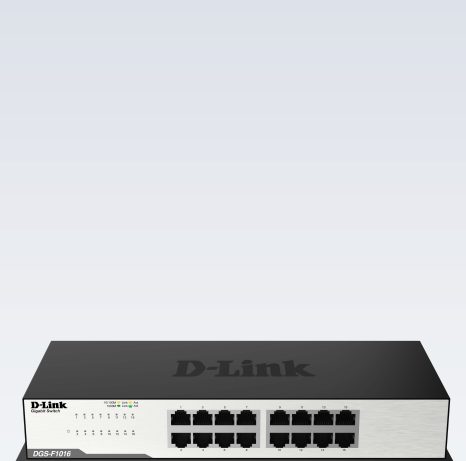

D-Link DGS-F1016 16-Port Gigabit-Switch The D-Link DGS-F1016 16-Port Gigabit-Switch comes with 16 Gigabit Ethernet ports for fast network speeds and backwards compatibility.In addition it has a Half/full-duplex for Ethernet/Fast Ethernet speeds. Equally important it supports Innovative D-Link Green Ethernet technology.Its also 802.3az Energy-Efficient Ethernet (EEE) compliant, thus highly recommended. Product Specifications: GENERAL SPECIFICATIONS: NUMBER OF PORTS: Has Sixteen (16)10/100/1000Mbps (GIGABIT) ports STANDARDS: IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T, IEEE 802.1p Quality of Service (QoS) Also IEEE 802.3x Flow Control supported for full-duplex, Auto-negotiation IEEE 802.3az Energy-Efficient Ethernet (EEE) DATA TRANSFER RATES: Ethernet: 10 Mbps/20 Mbps (half-duplex/full-duplex) Fast Ethernet: 100 Mbps/200 Mbps (half-duplex/full-duplex) Gigabit Ethernet: 2000 Mbps (full-duplex) NETWORK CABLES: Ethernet: 2-pair UTP Cat.3/4/5/5e/6/6A, Unshielded Twisted Pair (UTP) Cable Fast Ethernet: 2-pair UTP Cat.5/5e/6/6A, Unshielded Twisted Pair (UTP) Cable Gigabit Ethernet: 4-pair UTP Cat.5/5e/6/6A, Unshielded Twisted Pair (UTP) Cable FUNCTIONALITY: D-LINK GREEN FEATURES: Power saving by link status and cable length SECURITY: Storm Control QOS (QUALITY OF SERVICE): 802.1p priority, 8 queues CABLE DIAGNOSTICS: Indicated through port LEDs SWITCHING FEATURES: PROTOCOL: CSMA/CD SWITCHING CAPACITY: 32 Gbps MAX. FORWARDING RATE: 23.81 mpps PACKET BUFFER RAM: 512 KBytes per device FILTERING ADDRESS TABLE: 8K MAC addresses per device PACKET FILTERING/FORWARDING RATE: Ethernet: 14,880 pps per port Fast Ethernet: 148,800 pps per port Gigabit Ethernet: 1,488,000 pps per port MAC ADDRESS LEARNING: Self-learning, auto-aging FORWARDING MODE: Store-and-forward
