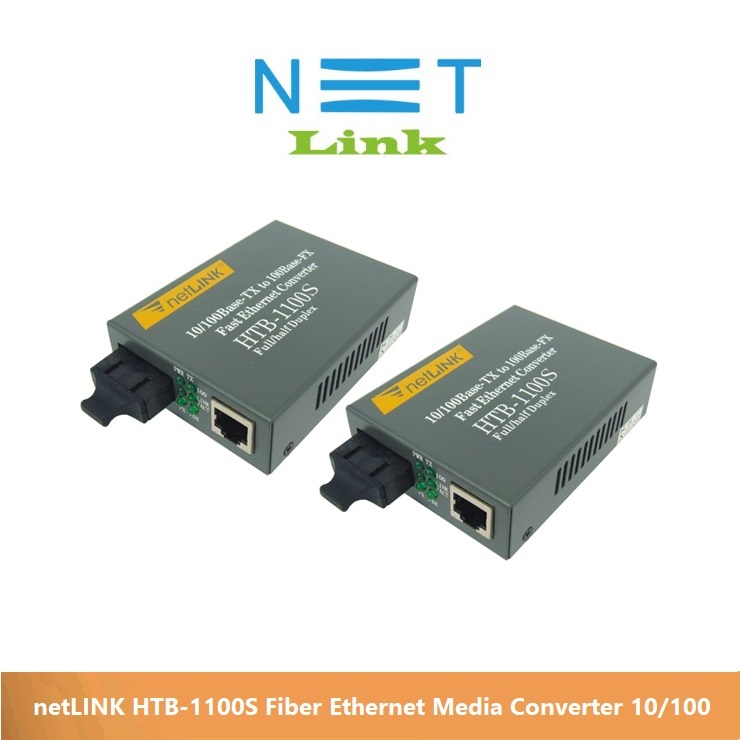

netLINK HTB-1100S 10/100M Single-Mode Fiber Optic Ethernet Media Converter (Pair)
$30.06
$43.29
Feature Auto negotiation function allows UTP port to select the transmission mode of 10/100M and Full Duplex or Half Duplex. UTP port supports MDI/MDI-X auto crossover. Multiple optical interface to be chosen: SC,ST or FC,singlemode/multimode Supporting 1552 Byte packet Internal circuit of prevented thunder could greatly reduce damage of the converter caused by thunderbolt induction. Design of internal or external power supply for selection by users Specification Operating standards: IEEE802.3u, 10/100Base-TX and 100Base-FX MAC address table: 1K Connector: UTP: RJ-45 10/100Mbps; Fiber: ST/SC/FC 100Mbps Cable: UTP: Cat. 5 UTP (the max distance up to 100m) Fiber (Multimode): 50/125, 62.5/125μm(the max distance up to 2km or 5km) Fiber (Singlemode): 8.3/125, 8.7/125, 9/125, 10/125μm(the max distance up to 20 -120km) Flow Control Full Duplex: Supporting standard IEEE802.3x Half Duplex: Backpressure LED: Power, FX FDX, FX Link/Act, TX 100, TX FDX, TX Link/Act. Power: AC 110V-240V to DC 5V; DC 48V to DC 5V. Ambient Temperature: 0 ℃ ~ 70 ℃ Humidity: 5% ~ 90% Dimensions: Internal power: 30x110x140mm External power: 26x70x93mm
