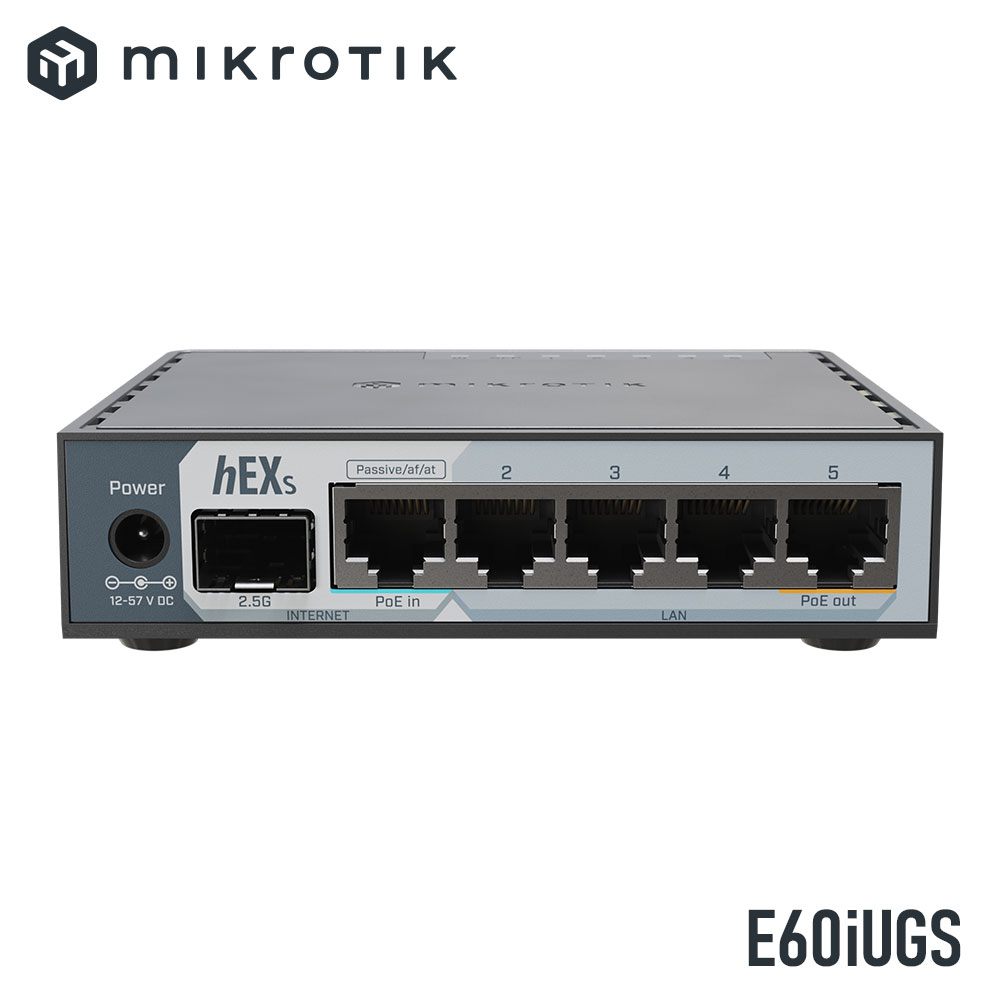

A compact, affordable wired router featuring a 2.5G SFP port, 5x Gigabit Ethernet, PoE out, USB, and a fast dual-core CPU – ideal for homes, offices, or underfunded labs that need reliable performance. 2.5G SFP uplink 5 x 1G ethernet (bonding support) PoE-In & PoE-Out USB 3 port for storage & file sharing Dual-Core ARM CPU 512 MB RAM Flexible powering (12–57 V) RouterOS v7 Wall-mountable design Specifications Product code: E60iUGS Architecture: ARM 32bit CPU: EN7562CT CPU core count: 2 CPU nominal frequency: 950 MHz CPU Threads count: 2 Switch chip model: EN7523 RouterOS license: 4 Operating System: RouterOS v7 Size of RAM: 512 MB Storage size: 128 MB Storage type: NAND MTBF: Approximately 100’000 hours at 25C Tested ambient temperature: -40°C to 70°C Powering Number of DC inputs: 2 (DC jack, PoE-IN) DC jack input Voltage: 12-57 V Max power consumption: 23 W Max power consumption without attachments: 5 W PoE in: 3af/at Cooling type: Passive PoE in input Voltage: 18-57 V PoE-out PoE-out ports: Ether5 PoE out: Passive PoE up to 57V Low voltage PoE-Out current limit: 5 A High voltage PoE-Out current limit: 5 A Ethernet 10/100/1000 Ethernet ports: 5 Number of 1G Ethernet ports with PoE-out: 1 Fiber SFP ports: 1 (2.5G supported) Peripherals Number of USB ports: 1 USB Power Reset: Yes USB slot type: USB 3.0 type A Max USB current (A): 1 Other CPU temperature monitor: Yes PCB temperature monitor: Yes Voltage Monitor: Yes Mode button: Yes Certification & Approvals Certification: CE, EAC, ROHS IP: 20
