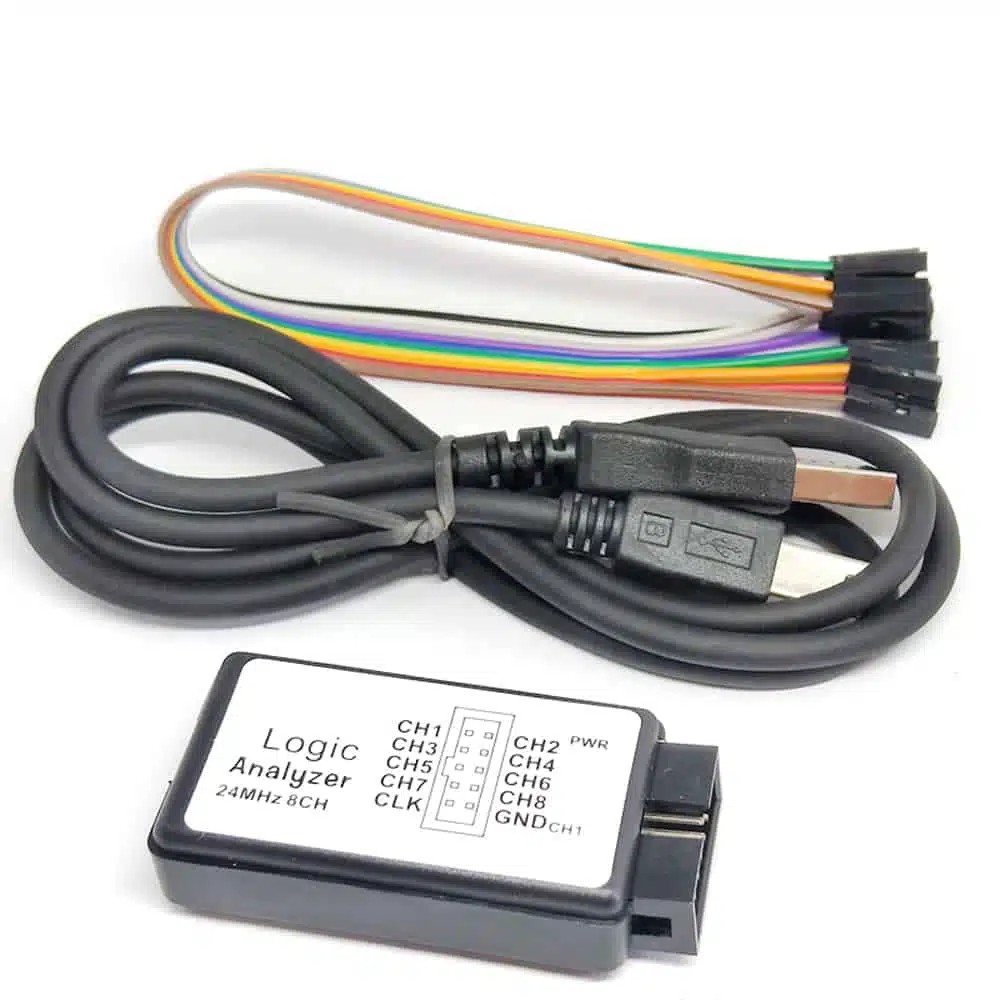

Description Specifications This compact 8-channel USB logic analyzer is a versatile tool for capturing and analyzing digital signals from electronic circuits. It provides detailed insight into system behavior by monitoring multiple data lines simultaneously.Key Features- Features 8 channels for comprehensive signal monitoring.- Provides a maximum sampling rate of 24 MHz, suitable for a wide range of digital protocols.- Supports common logic levels, compatible with both 5V and 3.3V systems.- Connects to a computer via a standard USB interface for data transfer and power.- Compatible with popular analysis software, including open-source PulseView (sigrok) and proprietary Saleae Logic for data visualization and protocol decoding.ApplicationsAn essential tool for debugging, analyzing, and reverse-engineering digital electronics. It is ideal for developers and hobbyists working with microcontrollers and embedded systems to decode and troubleshoot communication protocols such as I2C, SPI, and UART. Number of channels: 8Sampling rate: 24 MHzSelectable sampling rates: 24MHz, 16MHz, 12MHz, 8MHz, 4MHz, 2MHz, 1MHz, 500KHz, 250KHz, 200KHz, 100KHz, 50KHz, 25KHzInput voltage range: -0.5V to 5.25VInput voltage (low level): -0.5V to 0.8VInput voltage (high level): 2.0V to 5.25VSupported logic levels: 5V, 3.3V, 2.5V, 2.0VInput impedance: 1 MΩ || 10 pF (typical)Power supply: via USB
