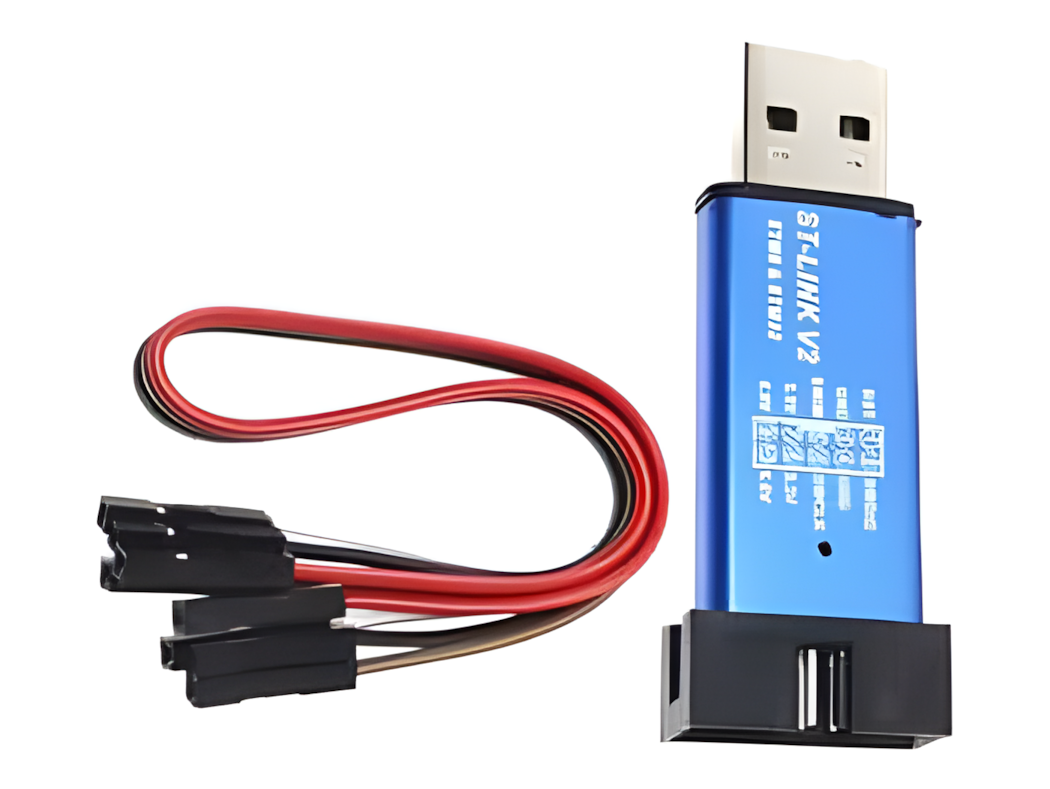

ST-LINK/V2 in-circuit debugger and programmer for the STM8 and STM32 microcontrollers

Description Specifications ST-LINK/V2 is a versatile in-circuit debugger and programmer for both STM8 and STM32 microcontroller families. It provides a direct interface between a development PC and a target microcontroller on an application board.Key Features- Supports both STM8 and STM32 series microcontrollers.- Utilizes the SWIM (Single Wire Interface Module) for communication with any STM8 device.- Employs standard JTAG/SWD interfaces for debugging and programming STM32 devices.- Connects to a PC and is powered via a standard USB Type-A to Mini-B port.Application & Software SupportThis programmer is designed for use with standard ST development toolchains. For STM8 microcontrollers, it interfaces with ST Visual Develop (STVD) or ST Visual Programmer (STVP). For STM32 development, it is compatible with tools such as STM32CubeIDE. Supported microcontrollers: STM8, STM32Interfaces: SWIM (Single-Wire Interface Module), JTAG/SWD (Serial Wire Debugging)Power: 5V via USB connectorUSB interface: USB 2.0 full-speedSWIM interface voltage: 1.65V - 5.5VJTAG/SWD interface voltage: 1.65V - 3.6V (with 5V tolerant inputs)SWIM programming speed: 9.7 kB/s (low-speed), 12.8 kB/s (high-speed)Operating temperature: 0°C - 50°CFeatures: Firmware update support (DFU), LED status indicator
