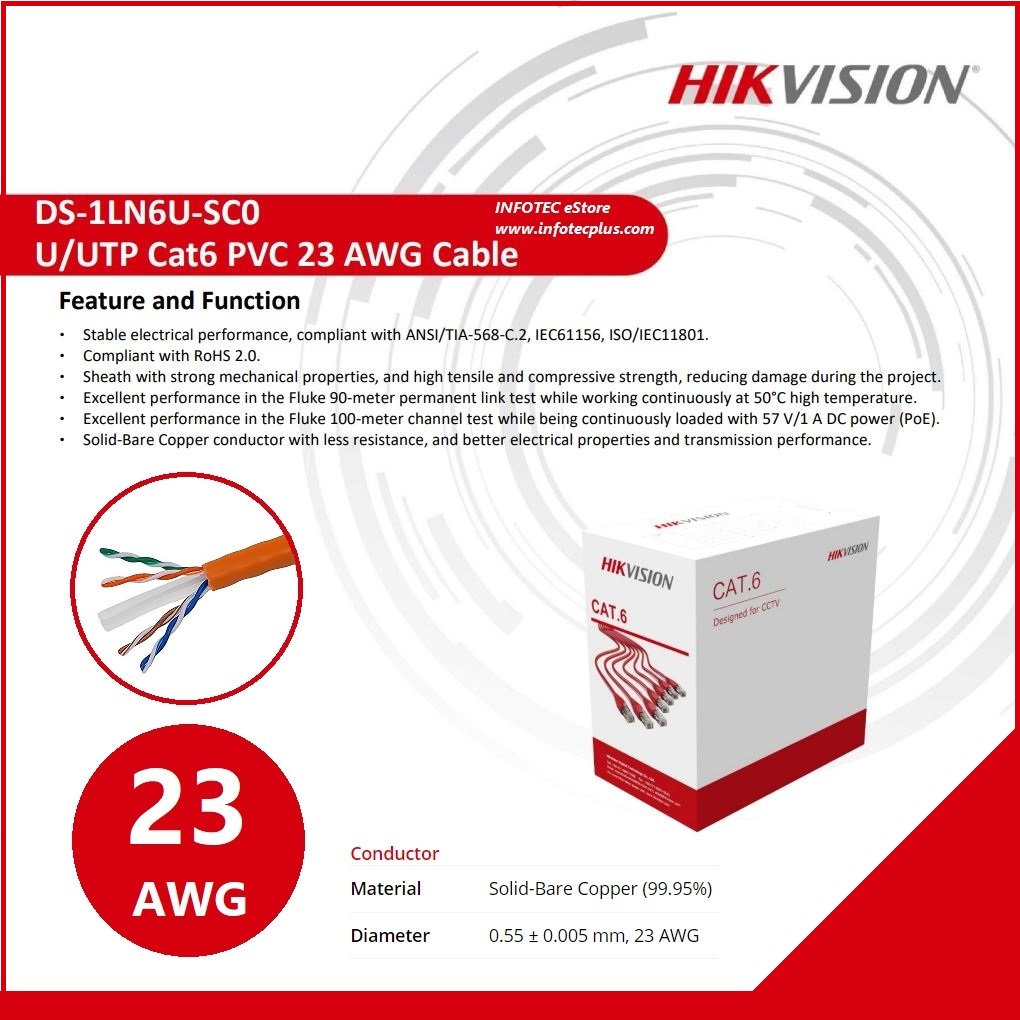

HikVision UTP CAT6 Network Cable 305M DS-1LN6U-SC0

$13.9 $22.1
General Rip-CordYes CategoryCat.6 Sheath PrintingHIKVISION 4PR 23AWG 75°C U/UTP CAT6 VERIFIED TO ANSI/TIA-568-C.2 PVC ****m mm/dd/yyyy Tracing Code-HS Reference StandardISO/IEC11801, ANSI/TIA-568-C.2, RoHS 2.0 Fire ResistanceNo SeparatorYes Conductor MaterialSolid-Bare Copper (99.95%) Diameter0.55 ± 0.005 mm, 23 AWG Insulation MaterialHDPE Diameter0.98 ± 0.05 mm Sheath Physical Properties Before Aging Tensile strength ≥ 13.5 Mpa Elongation ≥ 150% Aging Period100°C × 24h × 10d After Aging Tensile strength ≥ 12.5 Mpa Elongation ≥ 125% Cold Bend-20 ± 2°C × 4h, 8 × cable O.D, no visible cracks Electrical Characteristics(20℃) 1.0-250.0 MHz Impedance 100 ± 15 Ω @ ≤ 100 MHz 100 ± 25 Ω @100-250 MHz 1.0-250.0 Mhz Delay Skew≤ 45 ns/100 m DC Resistance≤ 9.38 Ω/100 m DC Conductor Resistance Unbalance≤ 5.0% Package Dimension400 mm (W) × 400 mm (H) × 240 mm (D) (15.75″ × 15.75″ × 9.45″) Weight12.3 ± 0.5kg Cable Length(305 ± 1.5) m Ambient Temperature-20°C to 75°C (-4°F to 167°F) Operating Voltage60 V Sheath Thickness0.50 ± 0.10 mm MaterialPVC ColorOrange Diameter6.00 ± 0.30 mm
