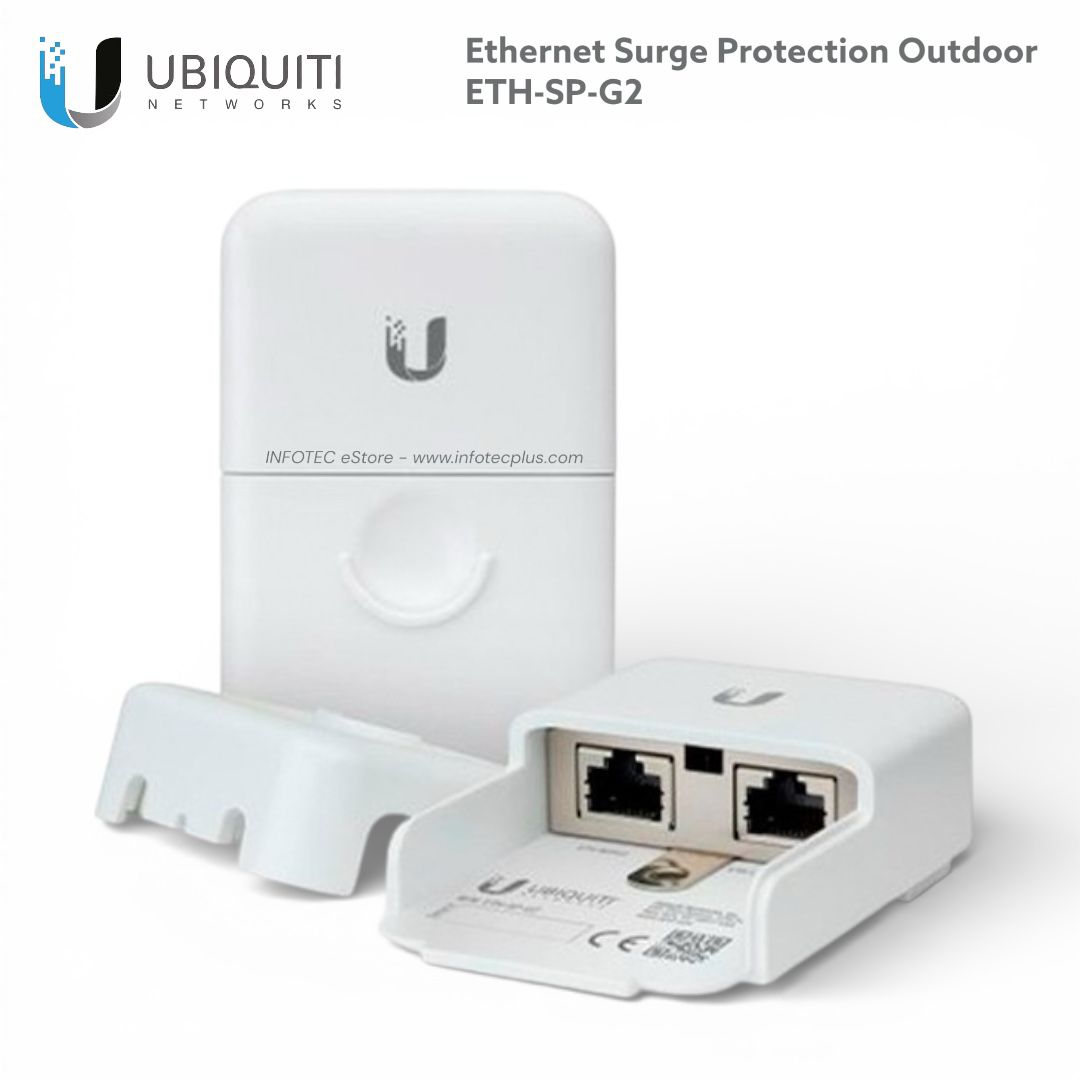

ESD protection for outdoor high-speed networks. Protects outdoor Ethernet devices (2) Passive, surge-protected RJ45 connections Quick and easy installation Compatible with 2.5 GbE networks Mechanical Dimensions: 91 x 61 x 32.5 mm (3.6 x 2.4 x 1.3″) Weight: 80 g (2.8 oz) Enclosure Material: Polycarbonate Weatherproofing: IPX5 Hardware Networking Interface: (2) RJ45 female connectors DC Spark-Over Voltage: 90V @ 100V/s Impulse Spark-Over Voltage: 700V @ 1kV/µs Discharge Current: 10kA Insulation: Resistance: 1G ohm @ 50V Capacitance: 1.0 pF @ 1 MHz Data Line Protection: Up to 2.5 Gbps PoE Support:✓ ESD Protection: Absorbing transient current with response to surge voltage from 100V/s to 1kV/µs Ambient Operating Temperature: -30 to 65° C (-22 to 149° F) Ambient Operating Humidity: 10 to 90% noncondensing Shock and Vibration Certification: ETSI300-019-1.4 Standard
