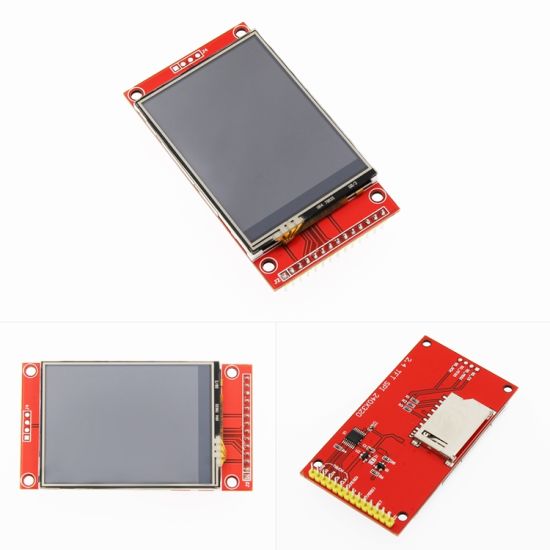

Description Specifications The OKY4031-1 is a 2.4-inch TFT LCD display shield, designed for direct compatibility with Arduino UNO and MEGA platforms. It provides a compact and capable solution for adding a full-color, touch-enabled graphical interface to your projects.Key Features- Features a 2.4" color screen with a 320x240 pixel resolution and 65k color depth for clear, vibrant visuals.- Includes an integrated resistive touch panel for direct user interaction.- Controlled via a standard 4-wire SPI interface using the common ILI9341 driver.- Equipped with an on-board TF (microSD) card slot, allowing for easy loading and display of graphical files.- Offers broad compatibility with systems using either 3.3V or 5V logic levels.- Operates with a low power consumption of approximately 90mA. Active Display Area: 36.72x48.96 mmAdditional Features: TF/SD Card SlotBacklight: 4 white-LED backlightBoard Size: 77.18x42.72 mmColor Depth: RGB 65K colorDiagonal: 2.4 inchDisplay Type: TFTDriver: ILI9341Interface: 4-wire SPI interfaceLogic Voltage: 3.3V (TTL)Operating Temperature: -20℃~70℃Power Consumption: about 90mAResolution: 320x240 PixelSupply Voltage: 3.3V~5VTouch Panel: 4-wire resistive touchscreen
