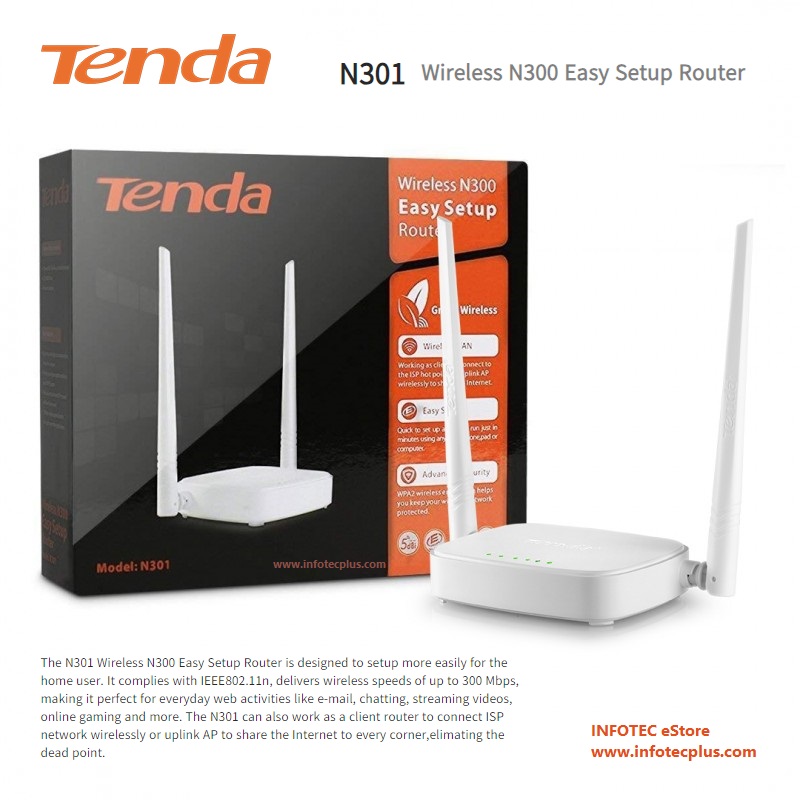

N301 Wireless N300 Easy Setup Router is designed to setup more easily for the home user. It complies with IEEE802.11n, delivers wireless speeds of up to 300 Mbps, making it perfect for everyday web activities like email, chat, streaming videos, online gaming and more. The N301 can also work as a client router to connect ISP network wirelessly or uplink AP to share the Internet to every corner,elimating the dead point. Standard&Protocol IEEE 802.3/3U IEEE 802.11n/g/b Interface 1 10/100Mbps WAN Port 3 10/100Mbps LAN Ports Antenna 2 fixed 5dbi Omni Directional antenas Button 1 Reset/WPS Button Dimension 127.4mm*90.5mm*26mm (L*W*H) Wireless Link Rate IEEE 802.11n: up to 300Mbps IEEE 802.11g: up to 54Mbps IEEE 802.11b: up to 11Mbps Frequency Range 2.412GHz-2.472GHz Working Mode Universal Repeater AP WISP WDS Bridge Wrieless Security 64/128bit WEP WPA-PSK WPA2-PSK WPS support Wireless Function Enable/Disable Wireless Radio Wireless Access Control Reception Sensitivity b mode：1M -92dBm@8% 11M -87dBm@8% PER g mode：54M -72dBm@8% PER n mode：72.2M -68dBm@8% PER； 150M -68dBm@8% PER Internet Connection Type Dynamic IP、PPPOE、Static IP、L2TP、PPTP DHCP Server Built-in DHCP server DHCP Client List Address Reservation Virtual Server Port Forwarding DMZ Host Parental Control Client Filter Mac Filter Websites Filter Dynamic DNS No-IP dyndns VPN Pass-through PPTP L2TP Other Bandwidth Control Mac Address Clone Remote Web Management System Log Package Content Wireless N300 Easy Setup Router N301 Quick Installation Guide Ethernet cable Power adapter Resources CD Environment Operating Temperature: 0℃~40℃ Storage Temperature: -40℃~70℃ Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing Certification FCC, CE,RoHs # NAME TYPE DATE FILE Download 01 N301 Firmware V12.01.01.45_EN Firmware 2018-10-12 02 N301 Firmware V12.01.01.42_EN Firmware 2018-07-20 03 N301 Firmware V12.01.01.28_EN Firmware 2018-02-25 04 N301 Firmware V12.01.01.28_EN Firmware 2017-08-10 05 N301 Firmware V11.13.01.23_EN Firmware 2016-04-19 06 N301 Firmware V5.07.49_EN Firmware 2013-10-21 07 N301V2.0 User Guide Manual 2017-12-12 08 N301 User Guide Manual 2015-06-15 09 N301 HD Image HD Image 2013-10-17 10 N301 Datasheet Datasheet 2013-09-24 11 N301 Installation Guide Guide 2014-08-09 12 N301 CE CE 2017-06-07 FAQ 01 N301-How to bind the IP address with your device FAQ 2018-12-04 02 N301-How to setup AP mode FAQ 2018-12-04 03 N301-How to setup Bandwidth Control FAQ 2018-12-04 04 N301-How to setup MAC Address Filter FAQ 2018-12-04 05 N301-How to setup Parental Control FAQ 2018-12-04 06 N301-How to setup Port Forwarding FAQ 2018-12-04 07 N301-How to setup WiFi Schedule FAQ 2018-12-04 08 N301-How to setup wired internet connection FAQ 2018-12-04 09 N301(Ecos)-How to setup Static IP mode FAQ 2016-03-31 10 N301(Ecos)-How to setup PPPoE mode FAQ 2016-03-31 11 N301(Ecos)-How to setup Dynamic IP(DHCP) mode FAQ 2016-03-31 12 N301(Ecos)-How to setup WISP mode FAQ 2016-03-31 13 N301(Ecos)-How to setup universal repeater mode FAQ 2016-03-31 14 N301(Ecos)-How to change wireless SSID and security key FAQ 2016-03-31 15 How to setup WDS bridge mode for N301 FAQ 2015-08-07 16 N301-How to change the SSID and wireless password FAQ 2015-05-19 17 How to setup WISP mode for N301 FAQ 2015-05-19 18 N301-How to change the SSID and wireless password FAQ 2013-12-03 19 N301-How to setup the router for DHCP internet connection mode FAQ 2013-12-03 20 N301-How to setup the router for L2TP internet connection mode FAQ 2013-12-03 21 N301-How to setup the router for Static IP internet connection mode FAQ 2013-12-03 22 N301-How to setup the router for PPTP internet connection mode FAQ 2013-12-03 23 N301-How to setup the router for PPPOE internet connection mode FAQ 2013-12-03
