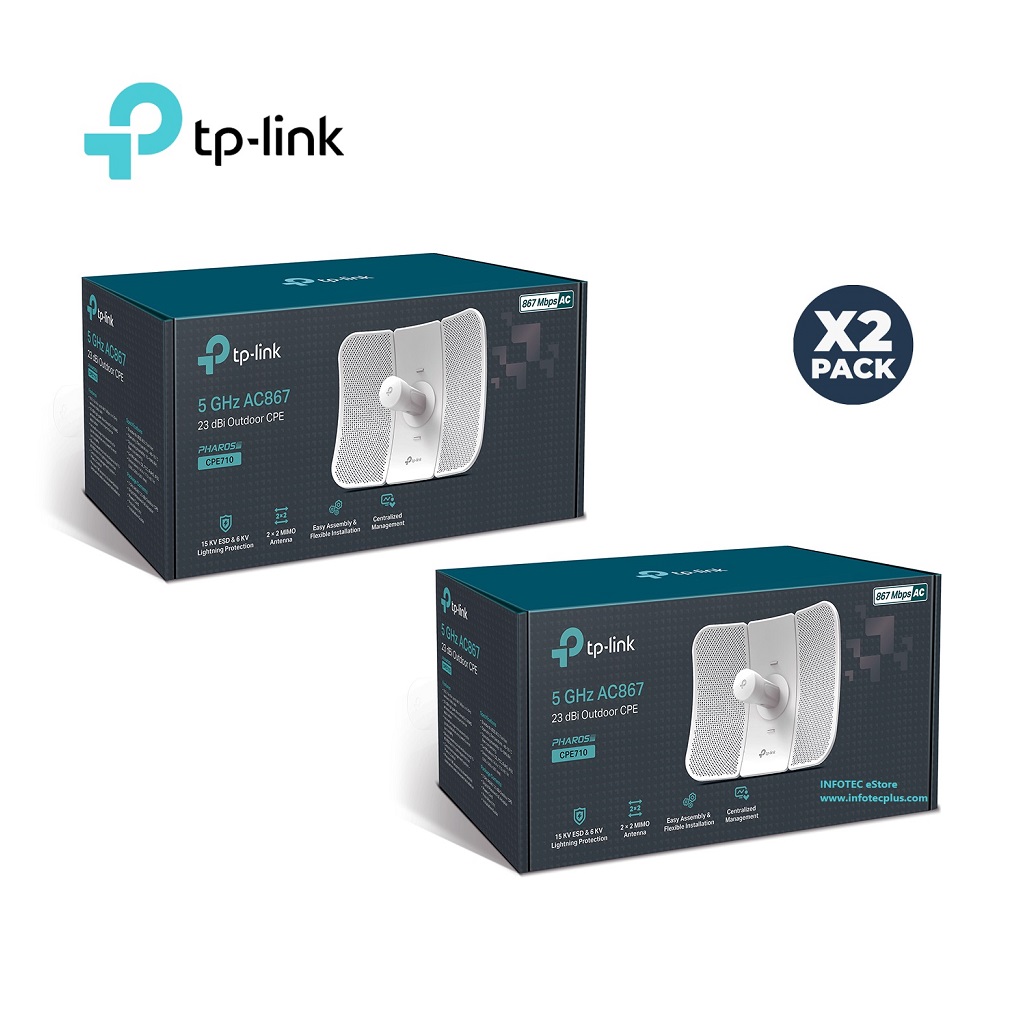

TPLINK CPE710 5GHz AC 867Mbps 23dBi Outdoor CPE (Pack of 2)

HARDWARE FEATURES Processor Qualcomm 750MHz CPU, MIPS 74Kc Memory 128 MB DDR2 RAM, 16 MB Flash Interface 1 10/100/1000 Mbps Shielded Ethernet Port (LAN/POE) 1 Reset Button Power Supply Passive Power over Ethernet via LAN ( 4,5pins; -7,8pins) Voltage range: 16-27V DC Dimensions ( W x D x H ) 14.4 x 11.0 x 8.1 in. (366 x 280 x 207 mm) Antenna Gain 23 dBi Antenna Beamwidth 9° (Azimuth)/7° (Elevation) Protection 15 KV ESD Protection 6 KV Lightning Protection Enclosure Material: Outdoor PC stabilized plastic Weatherproof: IP65 water and dust proof design WIRELESS FEATURES Wireless Standards IEEE 802.11a/n/ac Wireless Speeds Up to 867 Mbps (80 MHz, Dynamic) Up to 400 Mbps (40 MHz, Dynamic) Up to 173.4 Mbps (20 MHz, Dynamic) Frequency 5.15–5.85 GHz Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used. Transmit Power Max. 27 dBm (Adjustable power by 1dBm) SOFTWARE FEATURES Network Configuration WAN: Static/ Dynamic/ PPPoE LAN: Static/ Dynamic/ DHCP Forwarding: ALG/ UPnP/ Virtual Server/ Port Trigger Security: SPI Firewall/ Ping Forbidden/ DoS Protection Access Control Static Routing Bandwidth Control IP & MAC Binding Wireless Configurations Selectable channel width: 20, 40 or 80MHz Automatic Wi-Fi channel selection RF transmit power adjustment in 1 dB step Dynamic Frequency Selection (DFS) WDS Enable/ Disable Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) encryption, SSID broadcast enable/ disable Multi-SSID with VLAN tagging in AP mode Distance/ ACK timeout setting Wireless MAC address filter Wireless advanced features: Beacon interval, RTS threshold, fragmentation threshold, DTIM interval, AP isolation, short GI, Wi-Fi multimedia Long range point-to-point Management Discovery and Remote Management with Pharos Control (Windows) HTTP/ HTTPS Web-based management System log SNMP agent (v2c) Ping watchdog Dynamic DNS SSH server System Tools Indicators:Signal Strength, Noise, Transmit CCQ, CPU, and Memory usage Monitors: Throughput, Stations, Interfaces, ARP, Routes, WAN, and DHCP Spectrum Analyzer Speed Test Ping Traceroute Antenna Alignment System-level Optimizations Optimized IGMP Snooping / Proxy for multicast applications POE ADAPTER FEATURES Dimensions(W x D x H) 3.3 x 1.7 x 1.2 in. (85 × 44 × 30 mm) Interfaces 1 AC Jack with Earth Ground 1× 10/100/1000 Mbps Shielded Ethernet Port (Power Data) 1× 10/100/1000 Mbps Shielded Ethernet Port (Data) Button Remote Reset Button Power Status LEDs Green Input 100-240VAC, 50/60Hz Output 24VDC, 0.5A Max 4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet) Efficiency > 84.29% Certifications CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark OTHERS Certification CE, FCC, RoHS, IP65 Package Contents Outdoor Wireless CPE 24V 0.5A Passive PoE Adapter Pole Mounting Kits AC Power Cord Installation Guide Environment Operating Temperature: -40℃~70℃ (-40℉~158℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~95% non-condensing
