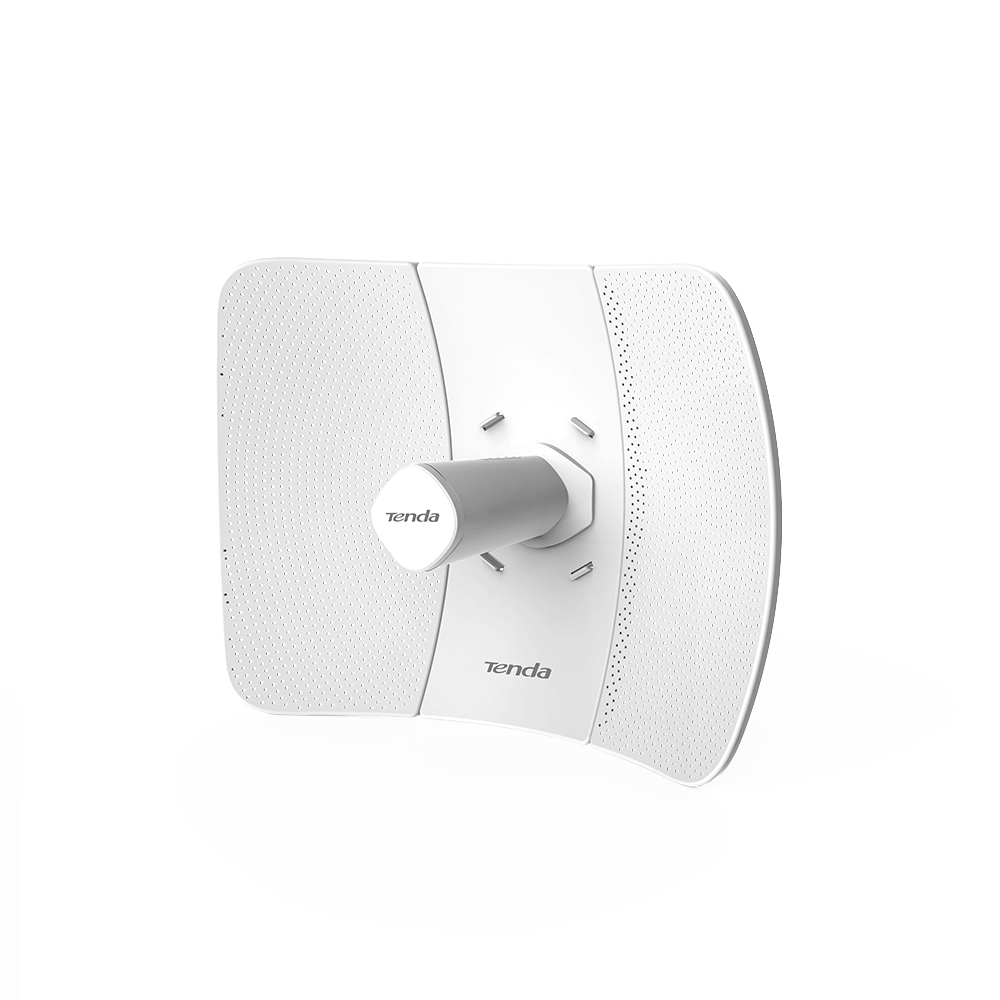

Main Features • 5GHz 11ac 867Mbps • One Gigabit ethernet port • 23dbi dual polarization antenna • IP65 weatherproof enclosure • 6000V Lightning Protection • AP,Station,WISP operating mode supported • Up to 60 meters of flexible deployment with included PoE adapter What it does O9 5GHz 11ac 23dBi gigabit outdoor CPE is designed to PtP and PtMP solutions for privated ISP wireless connectivity, CCTV surveillance and data transmission. It features with 23dBi directional dual polarization antenna to provide an efficient way to pick up and maintain a stable long-distance connectivity up to 25km. Adopt of auto-bridging technology, two CPE can connect to each other automatically to make it easy to setup. Specifications • Model: O9 • Dimension: 391.5*280*223mm • Deployment: Pole Mount • Application Scenarios: PtP and PtMP wireless connection for Privated ISP access or CCTV Surveillance • Frequency Range: 5GHz • Compliant Standards: IEEE 802.11a/n/ac • Private TDMA Protocol: TD-MAX • Maximum Wireless Rate: 867Mbps • Interfaces: 1*10/100/1000Mbps Ethernet Port • Antenna Polarization: Dual Polarization • Antennas Gain: 23dBi • Antenna Beamwidth: Horizontal: 10° Vertical: 10° • GND: /00 • Reset Button: 1*Reset Button • Power Consumption: 7.5W • Waterproof Level: IP65 • LED Indicator: PoE/LAN,LED1,LED2,LED3 • Power Method: 24V0.5A Passive PoE • Lightning Protection: 6000V • Passive PoE: Passive power over ethenet via PoE/LAN ( 4,5pins -7,8pins ) • Voltage range: 21-25V DC • Reception Sensitivity: 11a 6Mbps -96dBm±1.5dBm 11n MCS7 HT20 -72dBm±1.5dBm 11ac MCS9 HT80 -65dBm±1.5dBm • TDMA: Support • Operating mode: AP/Station/WISP/P2MP/WDS Repeater/Router • Enable/Disable Wireless Radio: Support • SSID Hidden: Support • Wireless Client isolation: Support • SSID Isolation: Support • Channel Bandwidth: 20/40/80MHz • Channel Shift: Support • Wireless Access Control: Support • Weak Signal Client Limitation: Support • Transmission Power: Adjustable power by 1dBm • WMM Capable: Support • APSD Capable: Support • Wireless Security: 64/128 WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK,WPA,WPA2 • Transparent Bridge: Support • VLAN Tagging for SSID: Support • DHCP Server: Support • VPN Pass-Through: PPTP,L2TP • Remote Web access: Support • Schedule Reboot: Support • Page Timeout: Support • Ping Watchdog: Support • Dyndns: noip, dyndns.org • Network Diagnoses: Ping, Traceroute, Signal Scan • Time and Date Setting: Support • Firmware upgrade: Support • Backup/Restore Configuration: Support • Username Managerment: Support • System Logs: Support • Managed By Controller: PC Software CPE Assistant • Package Contents: 1*5GHz 11ac 23dBi Gigabit Outdoor CPE O9 • 1*PoE Power Adapter • 1*Power cord • 1*Quick Installation Guide • Operation Temperature: -30℃ ~ 60℃ • Storage Temperature: -40℃ ~ 70℃ • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 10%~90% non-condensing • Default login IP: 192.168.2.1 • Default Login Username: admin • Default Login Password: admin • Certification: FCC/CE/RoHS
