AJAX Wireless Switching Module Black
$56.69
$70.3

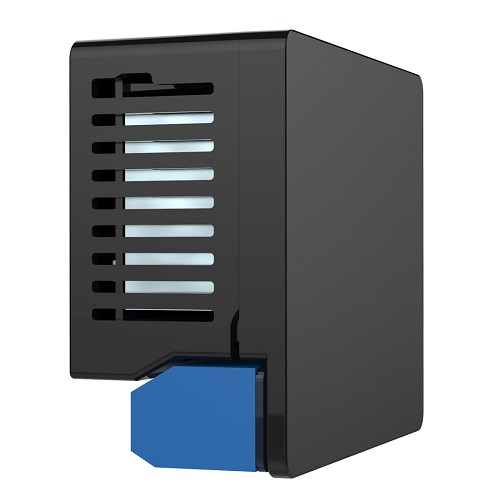

Description Specifications AJAX Wireless Switch Module Black - Radio channel controller allows to control domestic appliances remotely.It is used to switch on/off irons, garage gates, water heaters and heat-insulated floors.Authentication to prevent forgery.Jamming detection and communication channels encryption.Protected from power surges and overheating.The radio channel controller allows to control domestic appliances remotely. It is used to switch on/off irons, garage gates, water heaters and heat-insulated floors. Authentication to prevent forgery. Jamming detection and communication channels encryption. Protected from power surges and overheating. Device type: WirelessInstallation method: Into wall plateCompatibility: Operates only with Hub, Hub Plus, Hub 2 and ReXActuating element: RelayVoltage protection: For 230 V mains: max — 264 V, min — 161 V; For 110 V mains: max — 126 V, min — 77 VRelay service life: 200,000 switch-onsMaximum load current: 13 AMaximum current protection: Yes (13 A)Maximum temperature protection:65°C in the wall platePermissible power: Resistive load at 230 V — up to 3 kW; Resistive load at 110 V — up to 1.5 kWElectric power meter function: AvailableEnergy consumption parameter check: Current, voltage, power consumptionAlarm signal delivery time: 0.15 sPower supply: 110−230 V±10% 50/60 HzJeweller radio technology: Communication range with central unit — up to 1,000 m in an open space; Two-way communication between devices; Operating frequencies — 868.0 - 868.6 MHz; Self-adjusting RF output power — up to 25 mW; Block encryption based on AES algorithmDetector scanning period: 12 - 300 sOperating temperature range: From 0°С to 64°СPermissible humidity: Up to 75%Anti-sabotage: Protection against fraudJamming detection: Jamming detectionProtection class of body: IP20Remote setting and testing: Dimensions: 39 × 33 × 18 mmWeight: 30 g
Ajax
